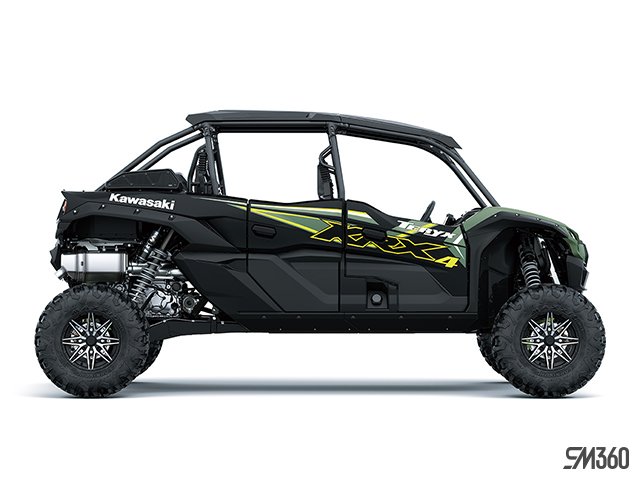

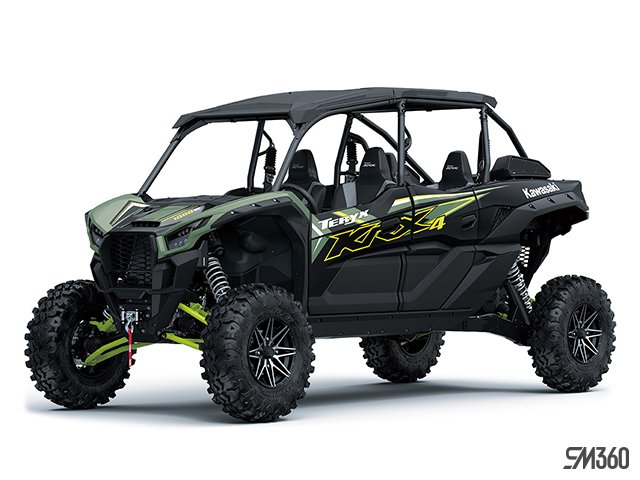

2024 Kawasaki TERYX KRX4 1000 SE at Jean Dumas Maximum Sport

Standard

• Starting - Electric
• Ignition - Digital
• Lubrication - Forced lubrication, wet sump
• Final Drive - 2WD/4WD, shaft
• Engine - 999cc, liquid-cooled, 4-stroke, DOHC 4-valve-per-cylinder parallel twin
• Bore x Stroke - 92.0 x 75.1 mm
• Compression Ratio - 11.5:1
• Fuel System - Fuel injection: ø50 mm x 2
• Transmission -Dual-range (high/low) CVT with centrifugal clutch and reverse

Standard

• Warranty - 6 months
• Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
• Lighting - 2x LED headlights
• Fuel Capacity - 40 litres
• Cargo Bed Dimensions (LxWxH): 370 x 840 x 230 mm (14.6 x 33.1 x 9.1 in)
• Cargo Bed Capacity: 159 kg (351 lb)
• Seating Capacity - 4
• Dimensions (L x W x H) - 3,995 x 1,730 x 2,015 mm (157.3 x 68.1 x 79.3 in)
• Wheelbase - 3,195 mm (125.8 in)
• Road Clearance - 345/365 mm (standard/max preload) (13.6/14.4 in (standard/max preload))
• Seat Height - 810 (F) / 820 (R) mm (31.9 (F) / 32.3 (R) in)
• Tread (F/R) - 1,510 mm (59.4 in) / 1,480 mm (58.3 in)
• Turning Radius - 7.1 m (23.3 ft)
• Vehicle Load Capacity - 454 kg (1,000 lb)
• Curb Mass - 981 kg (2,163 lb)
• Instrumentation - Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CVT temperature gauge, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, CVT belt warning lamp, low-battery warning lamp

Standard

• Engine Management Technology - Economical Riding Indicator, Power modes
• Chassis Management Technology - ERGO-FIT, KECS

Standard

• Frame - Ladder type, tubular steel
• Steering - Rack and pinion with Electric Power Steering
• Rake / Trail - 10.0° / 65 mm
• Steering Angle (L/R) - 34° (IN) / 29° (OUT), 34° (IN) / 29° (OUT)
• Parking Brake - Auto-adjust mechanical disc
• Front Suspension / Wheel Travel - Double wishbone, FOX 2.5 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually-adjustable spring preload / 472 mm (18.6 in)
• Rear Suspension / Wheel Travel - 4-Link Trailing Arm rear suspension, FOX 2.5 Live Valve Internal Bypass shocks with piggyback reservoir, KECS-controlled compression damping, and manually-adjustable spring preload / 536 mm (21.1 in)
• Front Tire - MAXXIS Carnivore 31 x 10.00R15 8PR
• Rear Tire - MAXXIS Carnivore 31 x 10.00R15 8PR
• Front Brake - Dual ø258 mm discs with twin-piston (ø32 mm x2) calipers
• Rear Brake -Dual ø258 mm discs with single-piston (ø38 mm x1) calipers
