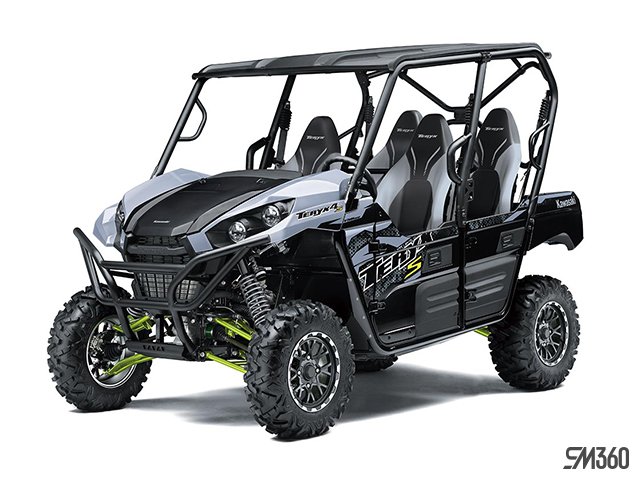

2025 Kawasaki TERYX4 S LE at Jean Dumas Maximum Sport

Standard

• Starting - Electric
• Lubrication - Forced lubrication, wet sump
• Fuel System - Fuel injection: ø36 mm x 2
• Ignition - Battery & coil (transistorized ignition)
• Final Drive - 2WD/4WD, shaft
• Engine - 783cc, liquid-cooled, 4-stroke, SOHC 4-valve-per-cylinder 90° V-twin
• Bore x Stroke - 85.0 x 69.0 mm
• Compression Ratio - 10.7:1
• Transmission - Dual range CVT with centrifugal clutch and reverse

Standard

• Kawasaki Protection Plus - 12 / 24 / 36 / 48 months
• Fuel Capacity - 30 litres
• Warranty - 36 months
• Lighting - 4x LED headlights
• Towing Capacity - 590 kg (1,300 lb)
• Instrumentation - Multi-function digital meter with digital speedometer, bar-style fuel gauge, clock, odometer, dual trip meters, hour meter, 2WD/4WD indicator, front differential lock indicator light, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, water temperature warning indicator, fuel injection warning indicator, oil pressure warning lamp
• Cargo Bed Capacity: 113 kg (250 lb)
• Seating Capacity - 4
• Wheelbase - 2,240 mm (88.2 in)
• Road Clearance - 285/310 mm (standard/max preload) (11.2/12.2 in (standard/max preload))
• Tread (F/R) - 1,400 mm (55.1 in) / 1,330 mm (52.4 in)
• Turning Radius - 5.4 m (17.7 ft)
• Dimensions (L x W x H) - 3,185 x 1,590 x 2,045 mm (125.4 x 62.6 x 80.5 in)
• Seat Height - 865 (F) / 930 (R) mm (34.1 (F) / 36.6 (R) in)
• Vehicle Load Capacity - 499 kg (1,100 lb)
• Curb Mass - 743 kg (1,638 lb)
• Cargo Bed Dimensions (LxWxH): 455 x 1,210 x 220 (F) / 125 (R) mm (17.9 x 47.6x 8.7 (F) / 4.9 (R) in)

Standard

• Chassis Management Technology - ERGO-FIT

Standard

• Front Brake - Dual ø200 mm discs with two-piston calipers
• Steering - Rack and pinion with Electric Power Steering
• Frame - Double-X reinforcement type, tubular carbon steel
• Rear Brake - Enclosed wet multi-plate
• Parking Brake - Enclosed wet multi-plate
• Front Tire - MAXXIS Bighorn 2.0 27 x 9R14 6PR
• Rear Tire - MAXXIS Bighorn 2.0 27 x 11R14 6PR
• Rake / Trail - 7° / 39 mm
• Rear Suspension / Wheel Travel - Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 254 mm (10.0 in)
• Steering Angle (L/R) - 37° (IN) / 32° (OUT), 37° (IN) / 32° (OUT)
• Front Suspension / Wheel Travel - Double wishbone, FOX 2.0 LSC Piggyback Shocks, fully adjustable preload, and adjustable compression damping / 272 mm (10.7 in)
